Price: 0.0051440 BTC
Note before buying:
1. RD6024 series has two versions:RD6024 and RD6024-W,RD6024-W have WIFI board , RD6024 don't have . RD6024-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6018 don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. Forthis function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2. For PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above.For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
3. If you connect inductive load (such as motor), the max working current is 1/3 of range. don't exceed it.
4. When get the PSU, please use multimeter to check if the real output voltage is stable and fits the rated voltage, to see if it is damaged on the way, if the output is abnormal, please contact us, do not connect it to RD power supply to avoid more loss
5. There may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product
6. You can only connect the cables with a foundation in electronic and electrical engineering and it must be reliably grounded!
7. Due to express delivery, some power supply warranty labels may be damaged, which does not affect product warranty!
8. Due to the different power supply production batches, the internal material details may be different, hereby explain!

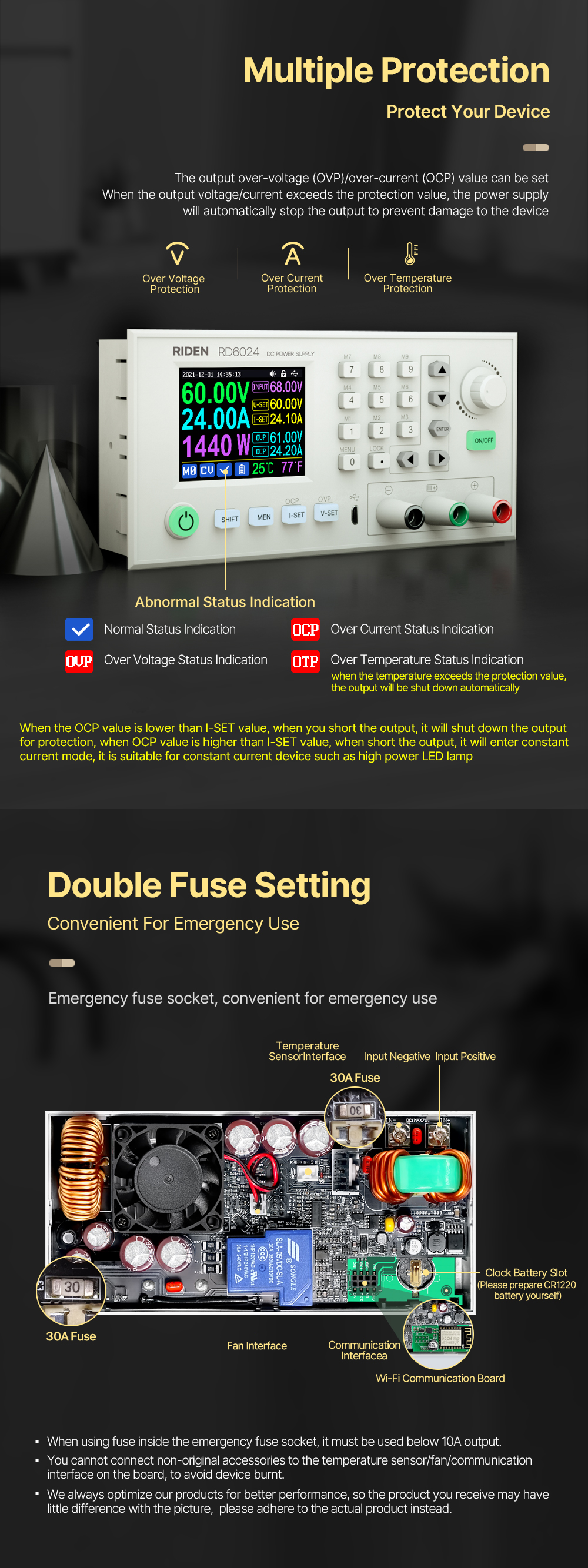

9. There is a BACKUP fusein the RD6024/RD6024W box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for temporary use and it supports only 10A, so it is better to remove the damaged fuse and solder the good fuse on the same position for full output.
10. When intall our switching power supply into our case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After the shell of the switching power supply is removed, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don't offer after sell service
1. If you do not order the whole set, the device can only be powered with DC input, no AC input. You need to use switching power supply for AC input, and it must be grounded, otherwise there is a risk of leakage
2. Recommend PSU:
It is recommended to use our custom PSU or famous brand PSU!
3. Not recommended PSU:
If you use AC-DC converter or transformer to power on RD power supply, you must add rectifier and filter, DC output voltage without load should be lower than 65Vï¼Œpower grid voltage fluctuation will cause the high output voltage and burn the device!
4. Banned PSU:
Forbid using electric bike charger, second-hand power supply, modified power supply, especially the PSU that claims to be suitable for RD power supply but we have not recommended ......These devices output are extremely unstable and may output high voltages and burn your load!
(bad PSU will have peak overvoltage)
Instruction video for manual:
a. Battery Charging Function Introduction: https://youtu.be/irTbqfqtgU0
b. Output Voltage and Output Current Setting: https://youtu.be/S6Kan66dNsk
c. Data Group Quick Storage and Call out: https://youtu.be/eo5saPjOGpo
d. Keypad lock and unlock: https://youtu.be/zxpmasJyQ6Y
e. System Setting: https://youtu.be/Q9d3rIgIrOc
f. Main Page Style Setting: https://youtu.be/f51VDiY2VHE
g. Storage Data Setting: https://youtu.be/i1kTeurS13I
h. System Information: https://youtu.be/Um4NQObeeJE
i. IOS APP Download, Installation and Connection: https://youtu.be/nH2HYwop0TE
j. IOS APP Operation: https://youtu.be/lXSw1CM9IY8
k. Android APP Download, Installation and Connection: https://youtu.be/QwyBEUCnp9c
l. Anroid APP Operation: https://youtu.be/hqrF4keTfbE
m. PC Software Download and basic operation: https://youtu.be/mjt1RMaah1Y
o. Firmware Upgrade: https://youtu.be/NOoLfDw0DiY
p. Calibration: https://youtu.be/c9sn1wY2mjE
q. Logo Update: https://youtu.be/vuVhBsohWts
r. RD6024 wifi connection Problem and solution: https://www.youtube.com/watch?v=7sTtc1kweJM
|Suitable Shell||ID: 1587330||ID: 1916916||ID: 1926450||ID: 1820669||ID: 1916916||ID: 1926450|
|Suitable power supply||ID: 1594324||ID: 1689167||ID: 1750643 or ||ID: 1820469||ID: 1916902||800W(ID:1750643)can also work(May not achieve best effect), but recommended 1000W ID:1931187|
|Input voltage range||6-70.00V||7-70.00V||7-70.00V||6-70.00V|
|Output voltage range||0-60.00V||0-60.000V||0-60.000V||0-60.00V|
|Output current range||0-6.000A||0-12.00A||0-18.00A||0-6.0000A||0-6.0000A/0-12.000A||0-24.00A|
|Output power range||0-360W||0-720W||0-1080W||0-360W||0-720W||0-1440W|
|Input voltage measurement resolution||0.01V|
|Output voltagesetting measurement resolution||0.01V||0.001V||0.01V|
|Output current setting measurement resolution||0.001A||0.01A||0.0001A||0.001A/||0.01A|
|Battery voltage measurement resolution||0.01V|
|Input voltage measurement accuracy||Â±(1%+5 digits)|
|Output voltage accuracybetween setting and measurement||Â±(0.3%+3 digits)||Â±(0.5â€°+4 digits)||Â±(0.3%+3digits)|
|Output currentaccuracybetween setting and measurement||Â±(0.5%+5 digits)||Â±(1â€°+6 digits)||Â±(0.5%+5digits)|
|Battery voltage measurement accuracy||Â±(0.5%+3 digits)|
|Automatic cut off current valuewhen charging||10mA||100mA||Set by yourself||Set by yourself||Set by yourself(higher than 100mA)|
|Output ripple typical||100mV VPP||250mV VPP@6A||20mV VPP||100mV@12Aï¼Œ150mV@24A VPP â‘|
|Working temperature range||-10â„ƒ~40â„ƒ|
|External sensor Temperature detection range:||-10â„ƒ~100â„ƒ/0â„‰~200â„‰|
|External sensor Temperature detection accuracy:||Â±3â„ƒ/Â±6â„‰|
|Constant voltage moderesponse time||2ms (0.1A-5A Load)|
|Constant voltage mode loadâ€‚regulation||Â±(0.1%+2 digits)|
|Constant current mode loadâ€‚regulation||Â±(0.1%+3 digits)|
|Capacity measurement range||0-9999.99Ah|
|Energy measurement range||0-9999.99Wh|
|Capacity and energy statistical error||Â±2ï¼…|
|Buck working mode||Voltage drop >1Vand >10%||(input voltageÃ·1.1) -2||(input voltageÃ·1.1) -1 â‘¡|
|Cooling fan start condition||Output voltage>40V or Output current>4A or System temperature>45â„ƒ||Output current>8A or System temperature>45â„ƒ||Output current >4A or System temperature>45â„ƒ||Output current>4A or System temperature>50â„ƒ||Output current>8A or System temperature>45â„ƒ|
|Cooling fan shut down condition when working||Output voltage<40Vand Output current<3.9Aand System temperature<45â„ƒ||Output current<7.9Aand System temperature<45â„ƒ||Output current <3.9A and System temperature <45â„ƒ||Output current <3.9A and System temperature <50â„ƒ||Output current <7.9A and System temperature <45â„ƒ|
|Over temperature protection||System temperature>80â„ƒ|
|Screen brightness setting||0-5(6 level in total)|
|Screen||2.4inch color HD display|
|Weight(with package)||About 0.58kg||About0.61kg||About0.68kg||About0.62kg||About 0.66kg||About 0.72kg|
|Support USB communication||YES|
|Support WiFicommunication||Only W version has WiFi communication|
â‘ Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals.
â‘¡ for example: input voltage is 24Vï¼Œthe max output voltage is 19.8V.
1 x Power supply
1 x Wifi module (optional, only RD6024W contains)
